The effectiveness of outpatient Thermachoice endometrial balloon ablation: a long-term 11-year outcome study
© Springer-Verlag Berlin Heidelberg 2013
- Received: 29 June 2013
- Accepted: 6 August 2013
- Published: 21 August 2013
The aim of this study was to evaluate the long-term treatment outcomes of outpatient Thermachoice balloon endometrial ablation under a direct local anaesthetic cervical block (LA-Thermachoice). This paper is a prospective cohort study and a postal questionnaire survey in a UK teaching hospital with the participation of 253 women with heavy menstrual bleeding (HMB) undergoing LA-Thermachoice over an 11-year period between 2001 and 2011. Treatment success was measured by postoperative bleeding patterns, improvement in dysmenorrhoea, patient satisfaction and post-procedure hysterectomy rates. LA-Thermachoice was completed in 98 % of women. The survey response rate was 78 %. The median follow-up interval was 71 months (SD 42). Seventy-nine percent of the responders reported significant improvement in HMB with 40 % amenorrhoea rate and 86 % improvement in dysmenorrhoea. Eighty-one percent felt that the benefit of procedure was maintained over a long period of time. Eighty-six percent of women were satisfied with the outcome of their procedure. The case notes of non-responders were examined to check if any had undergone hysterectomy since the LA-Thermachoice procedure. In total, only 16 % of women had a hysterectomy. This study represents the largest published series of local anaesthetic thermal endometrial ablation, reporting clinical outcomes with 11 years (median 71 months) of post-treatment follow-up. It demonstrates that the patient satisfaction with LA-Thermachoice is high, and is maintained over a long period of time after the procedure.
- Thermachoice endometrial ablation
- Surgical management
- Heavy menstrual bleeding
- Patient satisfaction
Heavy menstrual bleeding (HMB) as a symptom is a very common gynaecological problem affecting 20 % of women of reproductive age [1, 2]. It can be managed medically with drugs such as tranexamic acid, mefenamic acid, oral contraceptive pills, or the levonorgestrel intrauterine system (LNG-IUS, Mirena™)  or surgically with procedures such as endometrial ablation or hysterectomy.
While hysterectomy still remains the definitive surgical treatment for HMB, endometrial ablation in contrast is less invasive and associated with shorter hospital stay and recovery, significant less pain, and fewer complications [4–7]. Currently, there is a variety of endometrial ablation techniques used worldwide, which are well-established alternatives to hysterectomy for the management of women with HMB [5, 8].
Thermachoice endometrial ablation (Gynecare; ethicon Inc., Somerville, NJ, USA) is a non-hysteroscopic ablation technique, involving a heated fluid-filled balloon to thermally ablate the endometrial tissue. This system has undergone significant improvement from the first generation Thermachoice (TBEA) to a third generation Thermachoice III (TBEA-III) in 2003, with the key differences including replacement of the latex balloon with a compliant silicone balloon and introduction of an impeller device for active fluid circulation to enable equal heat distribution to the entire endometrial surface area.
We previously compared the clinical outcome and effectiveness of TBEA and TBEA-III devices and reported 3-years post-treatment follow-up results . The results of that study indicated that the treatment satisfaction was high in both cohorts (combined satisfaction rate 76 %). However, TBEA-III was associated with a higher amenorrhoea rate (35 %) compared to the TBEA device (23 %) . The primary aim of this study was to determine if the treatment success, measured by improvement in bleeding patterns, relief of dysmenorrhoea and patient satisfaction, was maintained over a prolonged period of time i.e., up to 11-year period after the LA-Thermachoice. The secondary aim was to determine if any further medical or surgical procedures such as repeat LA-Thermachoice, treatment with the LNG-IUS or hysterectomy were required to control symptoms since LA-Thermachoice.
This prospective cohort study was carried out in a large teaching hospital. The study population comprised of pre-menopausal women with heavy menstrual bleeding, refractory to medical treatment and no desire to retain fertility, and who opted for local anaesthetic thermal balloon endometrial ablation (LA-Thermachoice) between February 2001 and December 2011. All patients had preoperative endometrial sampling demonstrating benign histology. These women did not undergo hormonal endometrial thinning in the preoperative preparation. Informed consent for the procedure was obtained by the operating surgeon on the gynaecological ward prior to the procedure.
Women with submucosal fibroids sized >3 cm, undiagnosed abnormal vaginal bleeding, current lower pelvic infection or uterine abnormalities, atypical endometrial hyperplasia or endometrial cancer, past allergic reactions to local anaesthetic agents, or distorted uterine cavity due to large fibroid, were excluded from the study.
LA-Thermachoice was performed according to our previously described protocol using Thermachoice (Gynecare, Menlo Park, Calif., USA) at study commencement (February 2001–July 2003) and upgraded to Thermachoice III (Gynecare, Ethicon Inc., Somerville, N.J., USA) from August 2003 onwards . The procedure was performed by three consultants over the study period. We maintained a computer database that was populated with the relevant peri-operative information from all patients undergoing LA-Thermachoice since 2001. Data were collected immediately post-procedure and updated once the patient was discharged, with any post procedural complications and analgesia requirements by the operating clinician.
Minimum follow-up interval post LA-Thermachoice was 12 months. Symptomatic improvement was assessed by asking women to grade the heaviness of their menstrual blood loss as none (amenorrhea), lighter than before (included spotting and vaginal discharge only), same as before, or heavier than before treatment. They were also asked to quantify their post-procedure menstrual pain, grade their satisfaction with the treatment on a 4-point ordinal scale (very satisfied, satisfied, dissatisfied, or very dissatisfied), and comment on any further medical or surgical procedures since LA-Thermachoice to control symptoms. All women were advised to quantify their period-related symptoms prior to hysterectomy procedures or menopause if they already had hysterectomy or achieved menopause since LA-Thermachoice. Case notes of non-responders were examined to check if any had undergone hysterectomy since the LA-Thermachoice procedure.

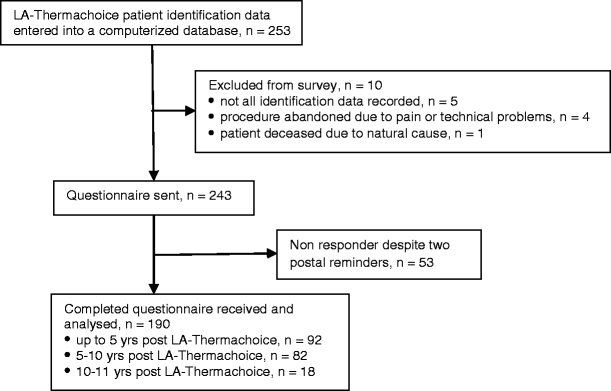

A formal ethics application was not required as the study was classified as a clinical service evaluation. Approval was obtained from the hospital research department to survey all patients who underwent the LA-Thermachoice procedure before the onset of data collection.
Categorical data were summarised as proportions and continuous data as means (±standard deviations (SD)) or medians (±range) where appropriate. Differences between proportions were analysed with the chi-square test with Fisher’s exact test. A p value of <0.05 was considered as statistically significant. The collected data were analysed using Microsoft Office Excel 2007 and SPSS (version 16, IBM SPSS Statistics).
Demographics and intraoperative data of women undergoing local anaesthetic thermal balloon endometrial ablation (LA-Thermachoice) between 2001 and 2011, n = 253
BMI, n = 240
Cycle phase, n = 247
93 (37 %)
91 (37 %)
34 (14 %)
15 (6 %)
Amenorrhoea due to drugs
14 (6 %)
Clinical findings (USS or hysteroscopic), n = 249
191 (77 %)
39 (15 %)
Submucosal fibroid <3 cm
5 (2 %)
7 (3 %)
7 (3 %)
Uterine size, cm, n = 249
184 (74 %)
43 (17 %)
22 (9 %)
Volume of fluid, ml
Thermachoice, n = 51
Thermachoice III, n = 185
Intrauterine pressure, mm Hg
Thermachoice, n = 51
Thermachoice III, n = 188
Mean visual analogue pain (VAS) immediately after procedure, n = 234
Not severe (VAS ≤8)
200 (81 %)
Severe (VAS ≥9)
34 (14 %)
Questionnaire survey depicting long-term outcomes in women undergoing local anaesthetic thermal balloon endometrial ablation (LA-Thermachoice) between 2001 and 2011
Varma et al.
Up to 3-year f/up
Up to 11-year f/up
n = 88 (86 %)
n = 190 (78 %)a
Mean follow-up time, months
Periods at review
27 (29 %)
106 (56 %)b
51 (55 %)
75 (39 %)
No change or worse
15 (16 %)
9 (5 %)
Length of bleeding at review, n = 188
106 (56 %)
26 (14 %)
27 (14 %)
16 (9 %)
6 (3 %)
7 (4 %)
Dysmenorrhoea at review
Less pain or no pain
64 (69 %)
167 (86 %)
11 (12 %)
18 (9 %)
18 (19 %)
10 (5 %)
Benefit maintained over time, n = 185
149 (81 %)
36 (19 %)
Further treatment (repeat ablation, drugs, LNG-IUS or hysterectomy), n = 187
83 (81 %)
166 (89 %)
19 (19 %)
21 (11 %)
Reason for further treatment, n = 21
6 (29 %)
8 (38 %)
7 (33 %)
All types of further treatment
No further treatment
74 (73 %)
156 (82 %)
3 (3 %)
4 (2 %)
Drugs (including HRT)
9 (9 %)
9 (5 %)
Repeat endometrial ablation
2 (2 %)
1 (0 %)
20 (11 %)
Satisfaction, n = 186
Very satisfied or satisfied
78 (76 %)
161 (86 %)
24 (24 %)
25 (14 %)
Seventy-nine percent of responders reported significant improvement in HMB and majority felt that the benefit of the procedure was maintained over a long period of time (Table 2). Ten (5 %) responders reported that they had undergone menopause since the LA-Thermachoice and of these, six (3 %) were using hormone replacement therapy (HRT). Twenty (11 %) responders reported that they had a hysterectomy. Both the above groups were excluded from the analysis for improvement in menstrual symptoms. Overall, 161 (86 %) reported that they were satisfied or very satisfied with the outcome and would recommend the procedure to a friend or a family member. The high satisfaction with endometrial ablation which was noticed in our previous study  was maintained for over an 11-years period of time (Table 2) since the procedure.
The satisfaction rates with the procedure in responders with up to 6 years follow-up (n = 96) were similar to those in responders between 6 and up to 11 years (n = 90) follow-up (79 vs. 84 %, p > 0.05).
Secondary treatment with the LNG-IUS (2 %), repeat TBEA (0.5 %), or hysterectomy (11 %) occurred in 34/190 (18 %) responders. Of the 20 (11 %) responders who indicated they had a hysterectomy following the LA-Thermachoice, 6 reported they were still satisfied with the initial procedure. These patients reported the main reason for the hysterectomy as dysmenorrhoea except for one responder who underwent a hysterectomy 10 years following the LA-Thermachoice due to a possible endometrial cancer.
In order to ensure a complete long-term follow-up, we examined the case notes of all non-responder patients for an entry of a hysterectomy operation over this period. In 15 patients, we cannot be sure if any additional surgery has been carried out elsewhere. Eighteen out of 53 (34 %) non-responders had a hysterectomy. Histology of these 18 hysterectomies reported adenomyosis (n = 3), leiomyoma (n = 2), adenomyosis with leiomyoma (n = 4), and no histological abnormality (n = 9). The remaining (n = 20) patients have not had any surgical interventions since their LA-Thermachoice.
Therefore, in total, only 38 out of 243 (16 %) patients required hysterectomy post LA-Thermachoice to control their symptoms. The average time interval between LA-Thermachoice procedure and hysterectomy was 22 months (SD 17). Hysterectomy rate was higher in patients who underwent endometrial ablation with TBEA (n = 15/51 i.e., 29 % users) compared to TBEA-III (n = 23/192 i.e., 12 % users) device.
This study represents the largest published series of local anaesthetic endometrial ablation. To the best of our knowledge, this is the first study to report clinical outcomes with 11 years (median 71 months) of post LA-Thermachoice follow-up. The study results show that the local anaesthetic outpatient thermal balloon endometrial ablation is an effective minimally invasive procedure for the management of women with symptoms of HMB. The results confirm that the patient satisfaction with LA-Thermachoice is high, and is maintained over a long period of time after the procedure. This study is important in that it provides further data on the long-term outcome and success of LA-Thermachoice.
Review of the literature data evaluating patient satisfaction and clinical outcomes with the LA-Thermachoice reveal a wide variation in results. Many of the studies are small and have a shorter follow-up time [11, 12]. It is important to follow the patients for longer periods, as some outcomes may change over time.
The main strength of this study lies in its long-term follow-up as we were able to cover a significant post-procedure follow-up time frame up to 134 months (median 71 months). The reported satisfaction rates with LA-Thermachoice in our study are in agreement with previously reported satisfaction rates (range 80–95 %) from women who underwent TBEA for HMB, proving the validity of the questionnaire survey [13–18].
There may be limitations in this study which lessens the reliability of its conclusions. The study population may be heterogeneous in relation to different heavy menstrual bleeding patterns. The study did not collect baseline quality-of-life data but we used established methods of assessing symptoms compared to pre-treatment. Also, it is possible that the 5 % of women who have subsequently undergone menopause would positively bias the results, but we were careful that we discounted these patients from the results which still showed significant improvement in patient outcomes. This could be particularly so as patients who underwent treatment from the TBEA device (older population of follow-up), which was shown to have a poorer outcome compared to TBEA-III device, have subsequently undergone the menopause . All women were advised to quantify their period-related symptoms prior to menopause if they already had achieved menopause since LA-Thermachoice. To minimise this bias, we have reported our figures after excluding those women who had undergone the menopause. This therefore represents the most conservative but pragmatic situation regarding the long-term outcome following LA-Thermachoice. Another important issue for questionnaire research is responder and non-responder bias. To minimise this bias, we tried to increase our response rate by contacting eligible patients multiple times. We managed to receive a good response rate to our survey, with 78 % of women completing the survey, which was better than the mean response of other mail surveys . The response rate may reflect women who are not willing to respond to postal questionnaires, those who may not recall their symptoms before LA-Thermachoice, natural loss of patients in long-term studies, and those where questionnaire was ultimately determined undeliverable due to incorrect address.
The study data confirms that patient satisfaction with LA-Thermachoice is high, and is maintained over a long period of time after the procedure. Furthermore, the data confirms that LA-Thermachoice is an effective treatment option for women with symptoms of HMB and a robust alternative to hysterectomy. This information is valuable when counselling patients regarding long-term satisfaction, success in reducing HMB and dysmenorrhoea with LA-Thermachoice, and potential need for further surgery after LA-Thermachoice.
