A new approach to simplify surgical colpotomy in laparoscopic hysterectomy
Gynecological Surgery volume 13, pages63–69(2016)
New surgical techniques and technology have simplified laparoscopic hysterectomy and have enhanced the safety of this procedure. However, the surgical colpotomy step has not been addressed. This study evaluates the surgical colpotomy step in laparoscopic hysterectomy with respect to difficulty and duration. Furthermore, it proposes an alternative route that may simplify this step in laparoscopic hysterectomy. A structured interview, a prospective cohort study, and a problem analysis were performed regarding experienced difficulty and duration of surgical colpotomy in laparoscopic hysterectomy. Sixteen experts in minimally invasive gynecologic surgery from 12 hospitals participated in the structured interview using a 5-point Likert scale. The colpotomy in LH received the highest scores for complexity (2.8 ± 1.2), compared to AH and VH. Colpotomy in LH was estimated as more difficult than in AH (2.8 vs 1.4, p < .001). In the cohort study, 107 patients undergoing LH were included. Sixteen percent of the total procedure time was spent on colpotomy (SD 7.8 %). BMI was positively correlated with colpotomy time, even after correcting for longer operation time. No relation was found between colpotomy time and blood loss or uterine weight. The surgical colpotomy step in laparoscopic hysterectomy should be simplified as this study demonstrates that it is time consuming and is considered to be more difficult than in other hysterectomy procedures. A vaginal approach to the colpotomy is proposed to achieve this simplification.
New surgical techniques and technical equipment have attempted to facilitate laparoscopic hysterectomy (LH), after shortcomings of LH in comparison with vaginal hysterectomy (VH) and abdominal hysterectomy (AH) were demonstrated . New alternatives for conventional suturing, such as bipolar coagulation, have improved hemostasis of the uterine and ovarian pedicles . Furthermore, in a systematic review, the superiority of vessel-sealing devices with respect to blood loss and shorter operation time in some abdominal procedures was demonstrated compared to other electrothermical devices . Finally, barbed sutures have been introduced for vaginal vault closing, and this technique appears to be equal compared to standard sutures with respect to time to cuff closing, cuff healing, and sexual function . Although some of these effects are debatable, for instance due to possible contributing factors such as learning curve, they do demonstrate the efforts to facilitate the LH. Certainly, notwithstanding the well-known benefits of LH, VH remains the gold standard for the hysterectomy procedure [1, 4], even though in contrast with this statement, recent studies have shown that LH was associated with shorter hospital stay, less blood loss, and less postoperative pain compared to VH [5, 6]. Yet, LH is still associated with a longer operating time [4, 7]. Furthermore, previous studies have demonstrated that LH is regarded as more difficult when compared to AH and VH . Learning curve issues and implementation errors have contributed to these results. However, there still are technical opportunities to simplify the LH procedure. Our hypothesis is that the colpotomy should be addressed in this context. Colpotomy is part of the final surgical steps in the LH procedure, following the ligation of the uterine arteries, the skeletonizing of the cervix, and the dissection of the bladder from the cervix. These steps are relatively hazardous and time consuming in the procedure. It is in this anatomical area where most of the bleeding and ureter injuries occur [9, 10]. Moreover, the delicacy of laparoscopic surgery in this anatomical area was demonstrated by the initial higher incidence of ureter injuries during LH, which only decreased after a certain learning curve was passed . In this light, an alternative route for colpotomy has been investigated: analysis of the current colpotomy procedure demonstrated that the main difficulties of this surgical step are the limited visibility during colpotomy (due to the anterior view of the endoscope combined with the location of the cervix deep in the pelvis), and the need for a 360° circular cutting motion during colpotomy. To overcome these difficulties, a vaginal approach to the colpotomy was suggested. The first test with a prototype of a vaginal colpotomy device on an in vitro vaginal model demonstrated a significant reduction of colpotomy time .
The aims of this study were to substantiate our hypothesis and to further evaluate the possibilities of a vaginal approach to colpotomy. The experienced difficulty, the duration of the surgical colpotomy step, and possible agents of change are evaluated. In addition, the idea of a vaginal approach to colpotomy is shaped into a new surgical instrument that may simplify colpotomy .
Materials and methods

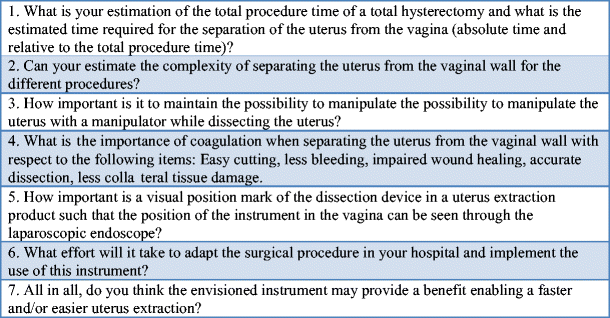

Firstly, to investigate the difficulty of the colpotomy procedure, a structured interview was performed among experts in minimally invasive gynecologic surgery working at different hospitals throughout the Netherlands. The interview assessed the participants perception regarding the surgical step of the colpotomy. Furthermore, they were asked about their opinion regarding several features of the proposed facilitation of the colpotomy. (Figure 1) Participants were asked to answer using a 5-point Likert scale: 1 meaning “easy”/“not important”, to 5 meaning “complex”/“important.”
Next, a prospective cohort study was performed at two hospitals specialized in minimally invasive gynecologic surgery. From June 2010 to May 2014, LH procedures were timed to assess the duration of colpotomy. The total operating time (TOT) was defined as the time from the insertion of the Veress needle to the final stitches used for closing last trocar incision site. Colpotomy time (CT) was defined as the time from the first incision in the vaginal fornix (after ligating the uterine arteries and all uterine ligaments) until the complete separation of the cervix from the vaginal wall. An extrafascial technique was used to perform total laparoscopic hysterectomy. The vaginal wall was opened anteriorly at the vesicovaginal fold, after which the colpotomy was completed. All consecutive LH procedures were eligible for inclusion. This study was exempt from approval by the medical ethics committee. Procedures were performed by five gynecologists who perform LH on a regular basis and have experience in well over 100 TLH procedures. The number of participating gynecologists was chosen to enhance the external validity of the outcome. Inter-surgeon variability was minimized by using similar surgical procedure protocols. Furthermore, all surgeons received their training at the Leiden Residency Program. The Valtchev or Clermont Ferrand uterine manipulator was used. Bipolar and ultrasonic instruments were used for colpotomy. Basic patient characteristics were gathered. The uterine weight and the total amount of blood loss were measured in the operating room. Patients were excluded in case of missing colpotomy time. Complications were classified according to the severity of the complications on the basis of the framework set by the Dutch Society for Obstetrics and Gynecology (NVOG) .
Baseline characteristics were summarized by means and standard deviations and, when applicable, by numbers and percentages. For the structured interview, an independent sample t test and a paired t test were used to compare experts versus residents and the type of hysterectomy, respectively. For the prospective study, t tests were used when applicable. A Pearson’s correlation coefficient and analysis of variance (ANOVA) techniques were used to test any correlation between different variables and colpotomies. A generalized linear model was performed to assess the independent effect of certain parameters (such as uterine weight, body mass index (BMI)) on the duration of colpotomy. All tests were performed at the .05 level of significance. SPSS 20 was used to analyze all data.
Sixteen experts from 12 hospitals were interviewed (Tables 1 and 2). On average, the experts performed 35 (SD 24) hysterectomy procedures annually, of which 59 % (SD 24) LH procedures, 19 % (SD 21) VH, and 22 % (SD 15) AH. The estimated TOT is 114 (SD 24) minutes, and they estimated this to spend 18 % (SD 11) on the colpotomy. The colpotomy in LH received the highest scores for difficulty (2.8 ± 1.2), compared to AH and VH. Colpotomy in LH was estimated as more difficult than in AH (2.8 vs 1.4, p < .001). The same trend is seen for the difficulty of colpotomy in LH versus VH (2.8 vs 2.0); however, this difference was not significant (p = .08). With respect to the vaginal approach to simplify colpotomy, the following functions of the envisaged instrument were regarded as moderately important to important by the participants: the ability to manipulate the uterus (4.5, SD 1.4), the presence of coagulation to stop bleeding during the colpotomy procedure (4.2, SD 1.1), and the existence of markings on the device to help visualize the device by the camera (4.6, SD .7).
Out of 164 consecutive patients, 107 patients undergoing LH were included. Fifty-seven (35 %) were excluded due to missing colpotomy time. Patient characteristics and procedure data are shown in Table 3. Most common indications for surgery were abnormal bleeding and/or uterine myoma. The mean total operating time was 116.4 min (SD 35.3 min), and the mean colpotomy time was 17.9 min (SD 7.8 min). On average, 16 % of the total procedure time was spent on colpotomy. BMI was positively correlated with colpotomy time (.320 and .311, both p = .001), and the generalized linear model confirmed the identified correlation and proved that it was independent from the other variables (Table 4). No statistically significant correlation was found between colpotomy time and uterine weight or blood loss.
This study demonstrates that the surgical colpotomy is a time-consuming step in the LH procedure, that is preceded by the hazardous dissection of the uterine arteries, bladder, and cervix, risking blood loss and ureter injuries. Colpotomy time comprises 16 % of the total operation time, even reaching 45 %. Albeit an extreme value, it does demonstrate the difficulty that can be experienced when performing this task. This is substantiated by our structured interview. In accordance with a previous study , our structured interview revealed that experts find colpotomy in LH significantly more difficult than in AH, and that the same trend is seen for colpotomy in LH compared to VH (although not significant). It is also demonstrated that a rise in BMI proved to be associated with a longer colpotomy time. This effect of BMI on the duration of surgery is in line with other studies [15, 16]. However, in our study, the effect of BMI on the colpotomy time remained even after correcting for total operation time. Apparently, higher BMI apart from the additional procedure time, accounts for an additional complicating factor regarding the colpotomy step. These women especially may benefit from the simplification of this procedure. Moreover, as the incidence of obesity is increasing, higher BMI will become part of everyday work in laparoscopic surgery . No other factors, such as the amount of blood loss, previous abdominal surgery, or the presence of complications seemed to influence the duration of colpotomy. Surprisingly, also for uterine weight no correlation was found with colpotomy time. It is our opinion, that the colpotomy procedure can be regarded as independent from “uterine” factors, such as uterine weight. Indeed, when performing the colpotomy after all uterine ligaments and arteries have been dissected, the obtained additional mobility of the uterus will compensate for restrictions due to uterine weight. However, although uteri weighing up to 930 g were removed, the vast majority of uteri in our cohort weighed below 360 g. Therefore, we realize that, based on the results from our cohort, our statement may not fully apply to very large uteri. Yet, support of our opinion can be found in literature, where the feasibility of LH in women with larger uteri has already been established [18, 19]. A limitation of our study is the high number of exclusions, especially given the prospective design of this study. However, the overall effect of the exclusions on the outcome of our study is limited. Missing data can be considered random and therefore effect cohort size rather than the results, although the introduction of bias cannot be fully excluded. Only one surgical protocol was used for our prospective study, and this raises the question of external validity regarding other surgical protocols. However the relative colpotomy time that resulted from our prospective study matches the estimated relative colpotomy time from our interview (16 % vs 18 %, respectively), in which gynecologists participated who use different protocols. This study did not focus on procedural steps of the LH other than colpotomy, which could be considered a flaw. For instance, dissection and sealing of the uterine artery would have been an interesting addition. On the other hand, this step has already been enhanced by new surgical techniques and technology. All other steps of the hysterectomy procedure are relatively straightforward and appear to be in no apparent need of improvement. Notwithstanding these shortcomings, our findings regarding colpotomy time are important. A recent study demonstrated that operative time was an independent predictor of postoperative morbidity and reoperation . Furthermore, a cost analysis of different approaches to hysterectomy showed that patient operation room costs and total patient costs are higher for LH when compared to VH, and that longer operation time proved to be an important contributor to these higher costs . In light of these studies, reducing CT and thereby the TOT may have beneficial effects on patient morbidity as well as on health care costs. This will become increasingly important, since there is an increase of laparoscopic hysterectomy procedures at the expense of the number of vaginal hysterectomies .
Vaginal approach for colpotomy

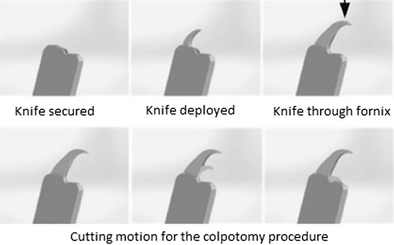

A prototype for a vaginal colptomizer device has been assembled . Although several methods exist to perform the surgical colpotomy such as bipolar and harmonics, to our knowledge, the vaginal route to colpotomy has not yet been proposed. Figure 2 demonstrates our prototype. The intrauterine part of the manipulator has mobility in all planes (i.e., anterior-posterior, lateral, and rotation). After introducing the manipulator into the uterus, a cap is positioned over the cervix. This cervical cap, which rotates, has several functions: it presents the vaginal cuff and helps to push the uterus cranially. Furthermore, it houses the knife that enables the vaginal colpotomy. The knife is deployed and operated by moving the knife driver and the handle of the manipulator. The exact location where the knife is introduced into the vaginal wall (and hence in the abdominal cavity) is identified by a light source in the manipulator. Figures 3 and 4 demonstrate the knife during colpotomy in a human cadaver test and in detail, respectively. Finally, after colpotomy is completed, the entire surgical specimen and the manipulator are removed. Certain questions remain to be answered. For instance, our interview tried to assess the preference for a coagulation-based or “cold knife”-based cutting mechanism. Coagulation was preferred in case of bleeding and, to lesser extent, to facilitate the cutting action. However, some concerns were raised over the possible negative effects of coagulation with respect to wound healing. Several studies have reported a higher incidence of vaginal vault dehiscence after LH when compared to VH and AH [23–25]. It has been suggested that electrocoagulation may be the cause for this higher incidence, due to more extensive tissue damage and/or suboptimal tissue healing [26, 27]. However, in large series, no effect of electrocoagulation was demonstrated with respect to the occurrence of vaginal vault dehiscence . Moreover, no effect of the power settings was observed . It was concluded that the current available scientific evidence does not support one technique over the other, and it is expected that this topic will continue to be a main point of interest for gynecological societies. However, in light of the feasibility of the device, a cold knife cutting mechanism was designed. The structured interview also demonstrated the need for a manipulator function integrated in the device. The importance of a uterine manipulator during LH has been demonstrated in literature. A manipulator is considered to increase the distance between the ureter and uterine arteries, thereby creating more space for the dissection of the uterine arteries . Furthermore, in a recent Delphi study, full agreement was reached regarding the use of a uterine manipulator during LH to prevent ureter injuries during LH . This resulted in the final design of the prototype: a uterine manipulator with an integrated vaginal colpotomizer.
In all, the significance of the present study is the clinically driven approach to the innovating the difficult surgical colpotomy step. Experiences in the past have shown the need for a careful introduction of new technology in daily practice [31, 32]. Consequently, innovation should start with a thorough analysis of the problem at hand. The eVALuate study has taught us that LH has certain disadvantages with respect to patient safety when compared to VH and AH . Technical developments have already contributed to the enhanced safety of LH. However, further simplifying the LH is necessary, since our study demonstrates that the surgical colpotomy step takes place in an anatomical area which is at risk for complications, is regarded as difficult, and comprises a considerable amount of the total duration of the LH procedure. Therefore, much can be gained by simplifying this step.
Earlier studies have taught us that LH has certain disadvantages with respect to patient safety when compared to VH and AH. Technical developments have already contributed to the enhanced safety of LH. However, further simplifying the LH is necessary, since reducing the operation time of LH may reduce health care costs and complication rates [20, 21]. Our study demonstrates that the colpotomy step in LH should be simplified. Not only is this surgical step time consuming bu it is also regarded as significantly more difficult when compared to AH. A vaginal approach of the colpotomy step may solve these issues. A surgical instrument was designed as a uterine manipulator with an integrated vaginal colpotomizer. The device intends to address the shortcomings of the current colpotomy technique. Clinical studies will commence shortly to evaluate the efficacy and safety of the vaginal approach to colpotomy.
Garry R, Fountain J, Brown J et al (2004) EVALUATE hysterectomy trial: a multicentre randomised trial comparing abdominal, vaginal and laparoscopic methods of hysterectomy. Health Technol Assess 8:1–154
Janssen PF, Brolmann HA, Huirne JA (2012) Effectiveness of electrothermal bipolar vessel-sealing devices versus other electrothermal and ultrasonic devices for abdominal surgical hemostasis: a systematic review. Surg Endosc 26:2892–2901
Einarsson JI, Cohen SL, Gobern JM et al (2013) Barbed versus standard suture: a randomized trial for laparoscopic vaginal cuff closure. J Minim Invasive Gynecol 20:492–498
Nieboer TE, Johnson N, Lethaby A et al (2009) Surgical approach to hysterectomy for benign gynaecological disease. Cochrane Database Syst Rev 8:CD003677
Candiani M, Izzo S (2010) Laparoscopic versus vaginal hysterectomy for benign pathology. Curr Opin Obstet Gynecol 22:304–308
Candiani M, Izzo S, Bulfoni A et al (2009) Laparoscopic vs vaginal hysterectomy for benign pathology. Am J Obstet Gynecol 200:368–7
Johnson N, Barlow D, Lethaby A et al (2005) Methods of hysterectomy: systematic review and meta-analysis of randomised controlled trials. BMJ 330:1478
Nieboer TE, Spaanderman ME, Bongers MY et al (2010) Gynaecologists estimate and experience laparoscopic hysterectomy as more difficult compared with abdominal hysterectomy. Gynecol Surg 7:359–363
Janssen PF, Brolmann HA, Huirne JA (2013) Causes and prevention of laparoscopic ureter injuries: an analysis of 31 cases during laparoscopic hysterectomy in the Netherlands. Surg Endosc 27:946–956
Elliott SP, McAninch JW (2006) Ureteral injuries: external and iatrogenic. Urol Clin North Am 33(55-66):vi
Makinen J, Brummer T, Jalkanen J et al (2013) Ten years of progress—improved hysterectomy outcomes in Finland 1996-2006: a longitudinal observation study. BMJ Open 3:e003169
Gahler MM, van de Berg NN, Rhemrev J et al (2010) Vaginal approach for uterus separation during laparoscopic hysterectomy. J Med Devices 4:027514
Jansen FW, Rhemrev J (2013) MobiSep: a new approach to colpotomy in TLH. J Minim Invasive Gynecol 20:S51
Twijnstra AR, Zeeman GG, Jansen FW (2010) A novel approach to registration of adverse outcomes in obstetrics and gynaecology: a feasibility study. Qual Saf Health Care 19:132–137
Bardens D, Solomayer E, Baum S et al (2014) The impact of the body mass index (BMI) on laparoscopic hysterectomy for benign disease. Arch Gynecol Obstet 289:803–807
Osler M, Daugbjerg S, Frederiksen BL et al (2011) Body mass and risk of complications after hysterectomy on benign indications. Hum Reprod 26:1512–1518
Wang Y, Beydoun MA (2007) The obesity epidemic in the United States—gender, age, socioeconomic, racial/ethnic, and geographic characteristics: a systematic review and meta-regression analysis. Epidemiol Rev 29:6–28
O’Hanlan KA, McCutcheon SP, McCutcheon JG (2011) Laparoscopic hysterectomy: impact of uterine size. J Minim Invasive Gynecol 18:85–91
Uccella S, Cromi A, Serati M et al (2014) Laparoscopic hysterectomy in case of uteri weighing >/=1 kilogram: a series of 71 cases and review of the literature. J Minim Invasive Gynecol 21:460–465
Hanwright PJ, Mioton LM, Thomassee MS et al (2013) Risk profiles and outcomes of total laparoscopic hysterectomy compared with laparoscopically assisted vaginal hysterectomy. Obstet Gynecol 121:781–787
Wright KN, Jonsdottir GM, Jorgensen S et al (2012) Costs and outcomes of abdominal, vaginal, laparoscopic and robotic hysterectomies. JSLS 16:519–524
Driessen SRC, Baden NLM, van Zwet EW, Twijnstra ARH, Jansen FW. Trends in the implementation of advanced minimally invasive gynecologic surgical procedures in the Netherlands. J of Minim Invasive Gynecol. In press.
Kho RM, Akl MN, Cornella JL et al (2009) Incidence and characteristics of patients with vaginal cuff dehiscence after robotic procedures. Obstet Gynecol 114:231–235
Hur HC, Donnellan N, Mansuria S et al (2011) Vaginal cuff dehiscence after different modes of hysterectomy. Obstet Gynecol 118:794–801
Croak AJ, Gebhart JB, Klingele CJ et al (2004) Characteristics of patients with vaginal rupture and evisceration. Obstet Gynecol 103:572–576
Klauschie J, Wen Y, Chen B et al (2014) Histologic characteristics of vaginal cuff tissue from patients with vaginal cuff dehiscence. J Minim Invasive Gynecol 21:442–446
Sowa DE, Masterson BJ, Nealon N et al (1985) Effects of thermal knives on wound healing. Obstet Gynecol 66:436–439
Uccella S, Ceccaroni M, Cromi A et al (2012) Vaginal cuff dehiscence in a series of 12,398 hysterectomies: effect of different types of colpotomy and vaginal closure. Obstet Gynecol 120:516–523
Koh CH (1998) A new technique and system for simplifying total laparoscopic hysterectomy. J Am Assoc Gynecol Laparosc 5:187–192
Janssen PF, Brolmann HA, Huirne JA (2011) Recommendations to prevent urinary tract injuries during laparoscopic hysterectomy: a systematic Delphi procedure among experts. J Minim Invasive Gynecol 18:314–321
Stefanidis D, Fanelli RD, Price R et al (2014) SAGES guidelines for the introduction of new technology and techniques. Surg Endosc 28:2257–2271
Strasberg SM, Ludbrook PA (2003) Who oversees innovative practice? Is there a structure that meets the monitoring needs of new techniques? J Am Coll Surg 196:938–948
L. van den Haak contributed the following: project development, data collection, data analysis, and manuscript writing. J.P.T. Rhemrev contributed the following: project development, data collection, data analysis, and manuscript writing. M.D. Blikkendaal contributed the following: data collection, data analysis, and manuscript writing. A.C.M. Luteijn contributed the following: data collection, and data analysis. J.J. van den Dobbelsteen contributed the following: project development and data analysis. S.R.C. Driessen contributed the following: data collection, data analysis, and manuscript writing. F.W. Jansen contributed the following: project development, data collection, data analysis, and manuscript writing.
A grant for this study was provided by the European Regional Development Fund.
Conflict of interest
J.P. Rhemrev, MD PhD has shares in MobiSep b.v. Arnhem, the Netherlands. The other authors have nothing to disclose. This study was subsidized by the European Regional Development Fund.
This study was exempt from approval by the medical ethics committee. Only anonymous data from charts were analyzed. Patients were not subjected to experimental treatments, nor were they interviewed, nor were they in any way hindered during their treatment. Therefore, in agreement with Dutch regulations, informed consent was not obtained.
